If you need more flexibility over your integrations than Opal’s built-in integrations provide, or want to connect to a system Opal doesn’t yet support, you can build custom integrations yourself. You create custom integrations as either Custom Connectors, which require you build out endpoints yourself, or as Push-only App, which you can connect to your configured webhooks, or use as a bookkeeping tool without connecting to end systems.

​
Custom Connectors overview

Custom Connectors require you to implement API endpoints following Opal’s specifications. They allow for a bidirectional sync and are automatically synced with your end system in the same manner as native integrations. The Opal server responds to user-initiated requests to add or remove users to resources or groups, then propagates these changes to your custom app using signed API requests. Use Custom Connectors if:
  • You require a bidirectional sync and want to write data back to Opal
  • You want more control over your integration
To set up custom connectors, you first build your custom connector, exposing the Custom Connector API spec, then create a custom app in Opal using your custom connector configuration. See the Create your own connector guide for end-to-end instructions.

​
Custom connectors architecture

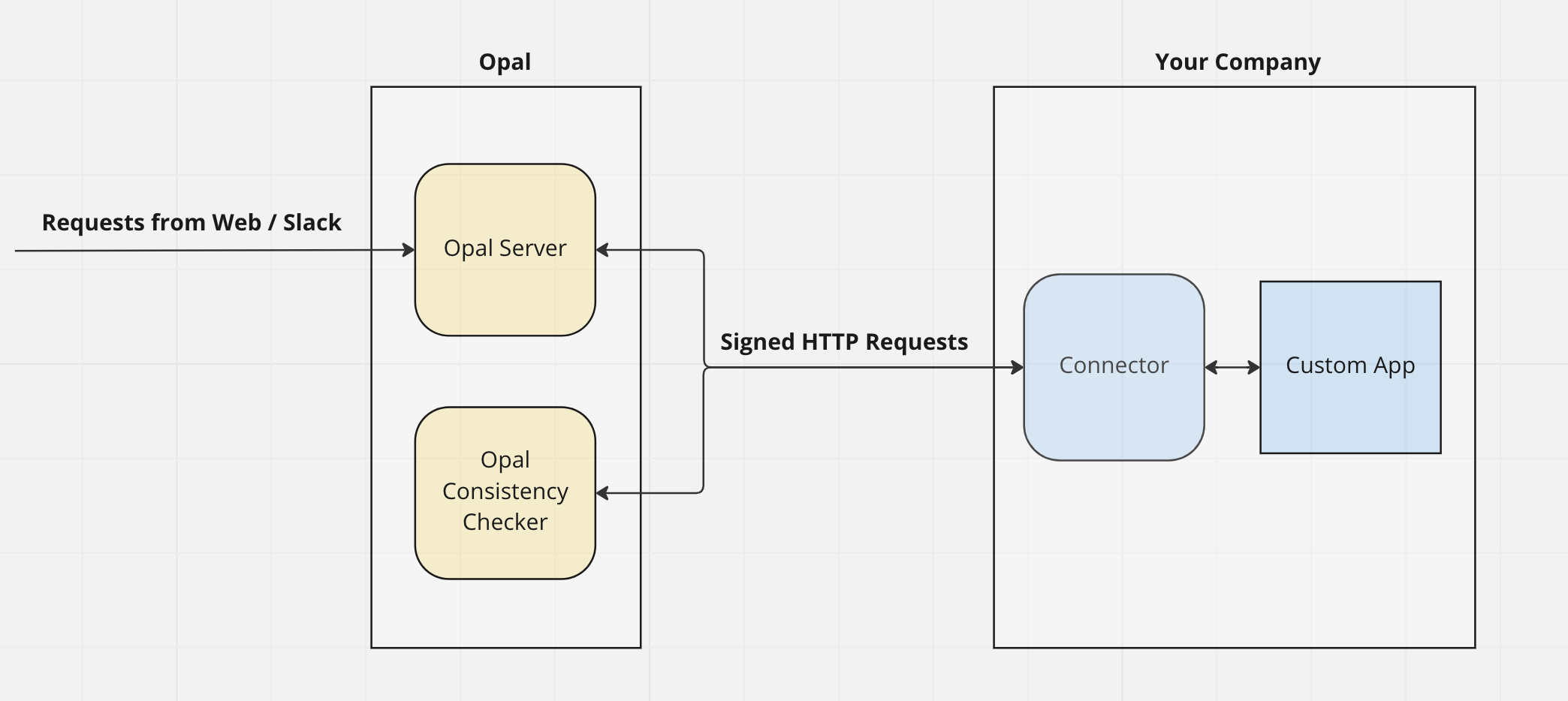

The following shows the high-level architecture of key components for custom app integrations. High level architecture of the key component interactions for a custom app integration The Opal components include:
  • Opal server - The Opal server responds to user-initiated requests from the web or Slack interface to add or remove users from resources. These are propagated to your custom app via signed requests to the API connector.
  • Opal consistency checker - On a periodic interval, Opal runs a consistency checker to retrieve the up-to-date user lists of your resources in the custom app via signed requests to the API connector.
The components for your organization include:
  • API connector - This is the interface that enables the integration. This connector should expose the API endpoints in the Custom Connector API Spec.
  • Custom app - The custom app that you want to integrate against.

​
Push-only apps and webhooks overview

Create Push-only apps to push events to configured webhooks or use the app as a bookkeeping tool. If you do not have a webhook configured in your Organizational Settings, push-only apps do not connect to any end system. Webhooks use a one-way push to your specified URL on access changes to groups and resources. They allow for only a one-way sync, so you are responsible for any access drift between your end systems and Opal. For example, you could use a one-way sync to send notifications and update issue trackers when users are added and removed from Opal groups. Use Webhooks if:
  • You require a one-way sync and don’t need to write data back to Opal
  • You want to add or modify users in your end system in response to Opal events
Opal currently supports only one webhook URL per organization. To set up Webhooks, see the Webhooks guide.
Webhooks should not be confused with Events Streaming. To send Opal Events to your logging destinations, e.g., DataDog, use Events Streaming.
