This guide assumes you’ve already configured your AWS organization in Opal.

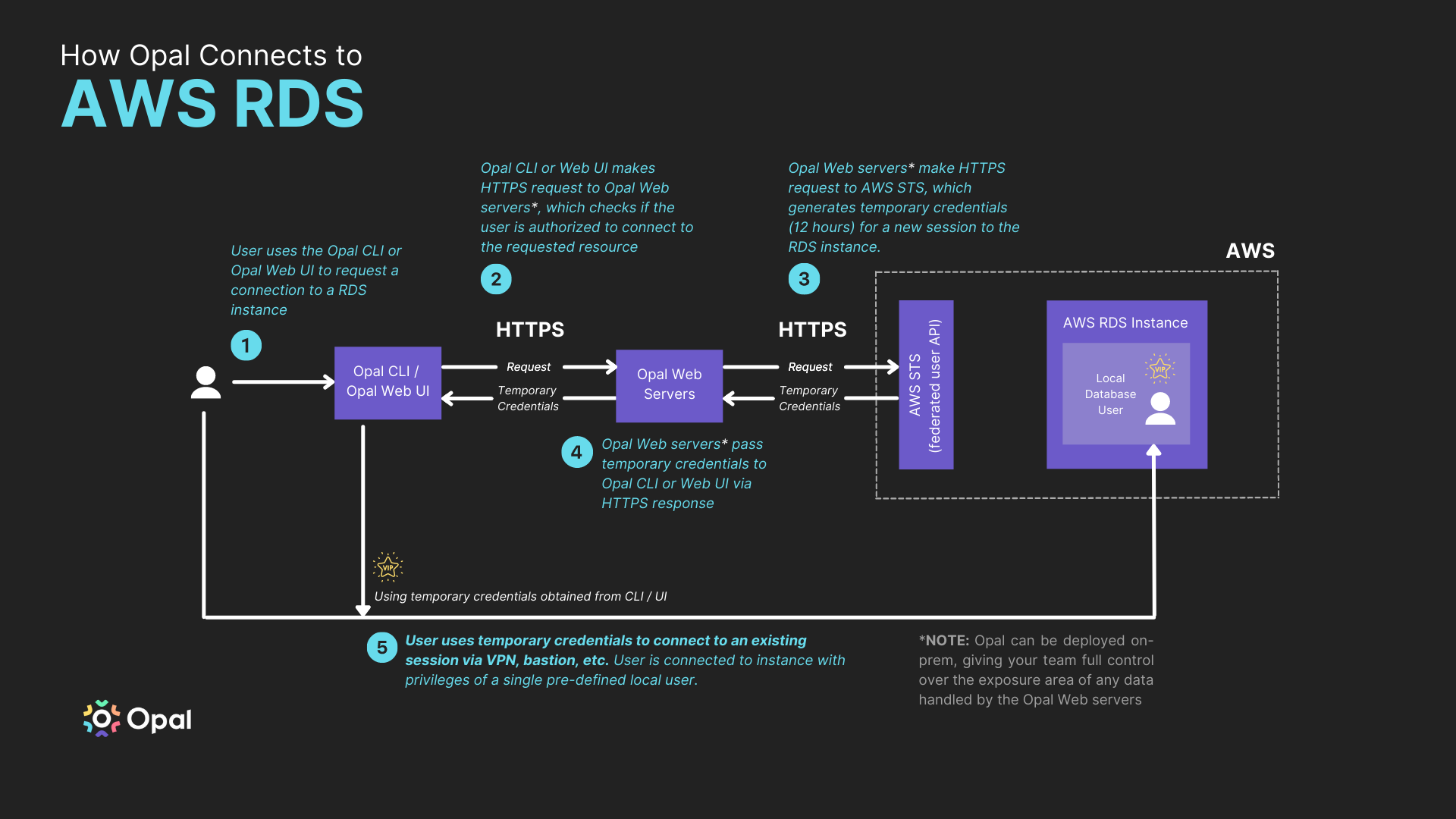

The following diagram illustrates how Opal connects to AWS RDS. Use this guide to learn how you can add RDS databases to Opal. 1920 You can add RDS databases to Opal easily using RDS IAM database authentication.

​
Supported RDS engines

Amazon IAM database authentication is available for the following database engines:
  • MySQL 8.0, minor version 8.0.16 or higher
  • MySQL 5.7, minor version 5.7.16 or higher
  • MySQL 5.6, minor version 5.6.34 or higher
  • PostgreSQL 14, 13, 12, and 11, all minor versions
  • PostgreSQL 10, minor version 10.6 or higher
  • PostgreSQL 9.6, minor version 9.6.11 or higher
  • PostgreSQL 9.5, minor version 9.5.15 or higher Don’t see what you want here? Let us know by suggesting an edit or reaching out and we’ll make it happen.

​
Add an RDS database

​
1. Enable IAM authentication

You’ll need to enable IAM database authentication for your RDS instance. You can do this using the AWS Console and CLI. You can read more on how to do this here in the AWS official documentation.

​
AWS Console

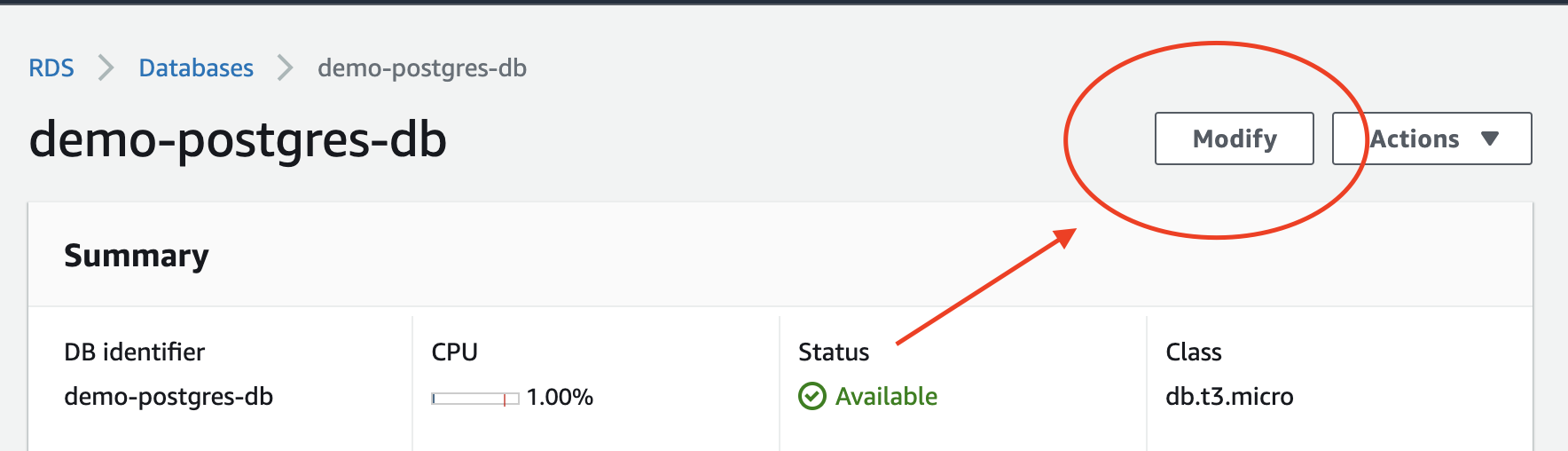

Modify your RDS instance

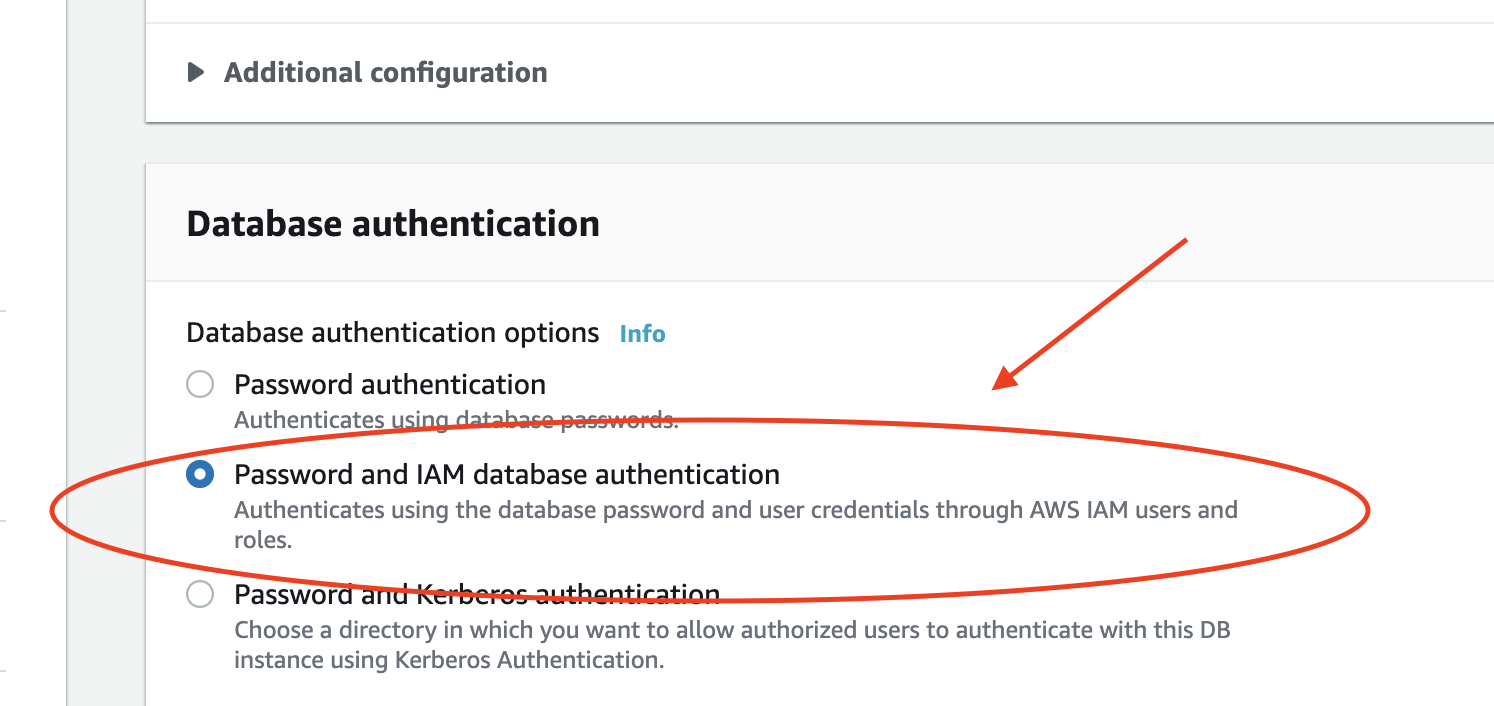

Enable IAM database authentication.

​
AWS CLI

mydbinstance \ --apply-immediately \ --enable-iam-database-authentication ```
</CodeGroup>

<Warning>
Enabling IAM Authentication **requires a brief outage** for your RDS database.
</Warning>

### 2. Create database users

Connect to your database and create a database user with read-only access. Here is a snippet you can use for Postgres and MySQL.

<CodeGroup>
```pgsql pgsql
-- Create a group
CREATE ROLE readaccess;

-- Grant access to existing tables
GRANT USAGE ON SCHEMA public TO readaccess;
GRANT SELECT ON ALL TABLES IN SCHEMA public TO readaccess;

-- Grant access to future tables
ALTER DEFAULT PRIVILEGES IN SCHEMA public GRANT SELECT ON TABLES TO readaccess;

-- Create a user with IAM authentication
CREATE USER readonly; -- NOTE: THIS USERNAME IS REQUIRED
GRANT readaccess TO readonly;
GRANT rds_iam TO readonly;

CREATE USER fullaccess; -- NOTE: THIS USERNAME IS REQUIRED
GRANT rds_superuser TO fullaccess;
GRANT rds_iam TO fullaccess;

​
Custom Database Users

If you’d like to instead define your own database users with custom amounts of access, you can do that easily in one of two ways: through Opal UI, or with tags.

​
Opal UI

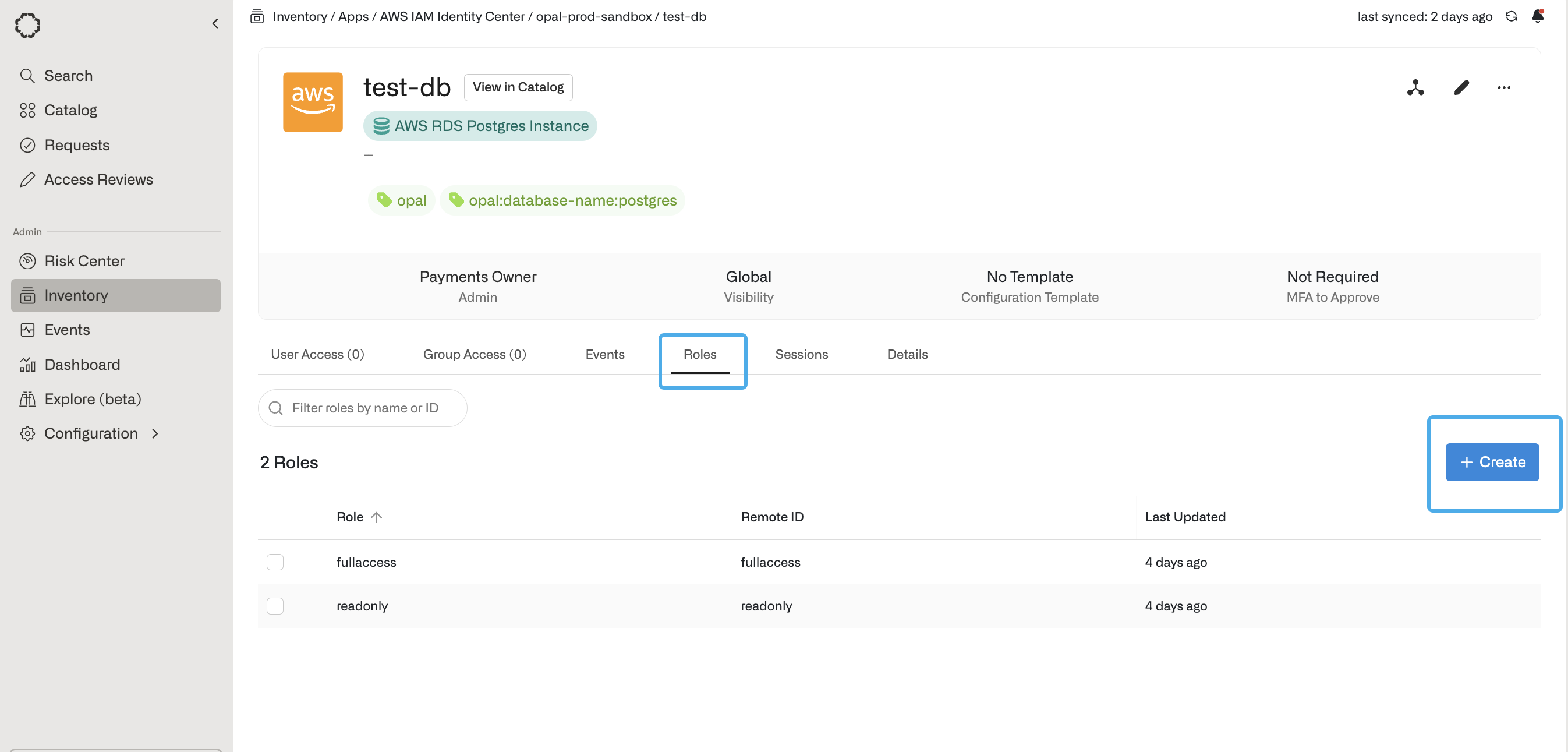

  1. In the Inventory, go to the Roles tab of the RDS instance, then select + Create.

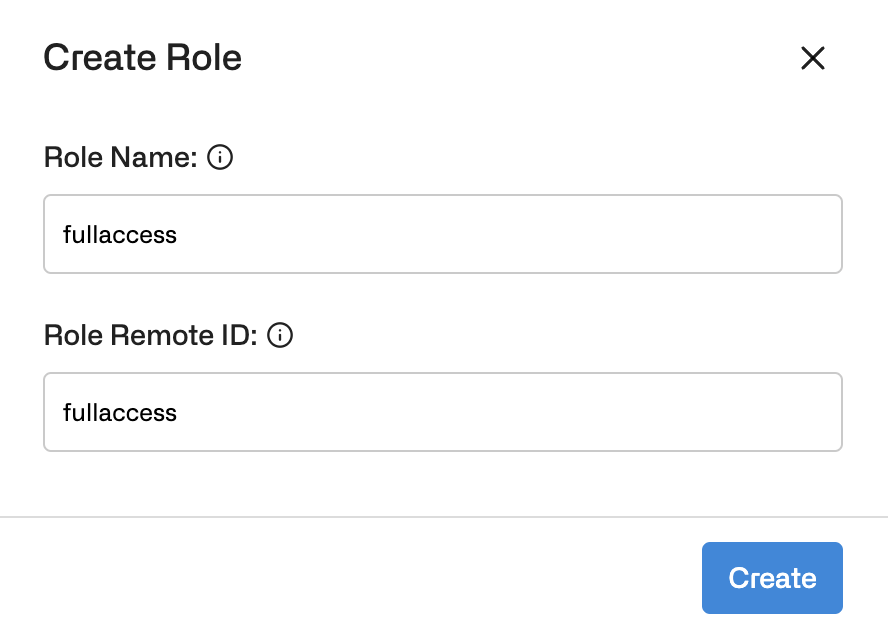

  1. Add a role name, and the database username as the Role Remote ID, then select Create.

​
Tags

  1. Create the user with any username that you like and grant them rds_iam with the following queries:
GRANT rds_iam TO myuser;
  1. Tag the RDS database with key opal:user:1 and value myuser. You can manage multiple levels of access using more tags! Example: opal:user:2 => myseconduser. To see how to tag your database check out Step 3.
Now the custom database users will show up in Opal as access levels.
AWS supports a maximum of 50 tags on a resource.

​
3. Tag the database

Finally, tag the RDS database with opal so Opal knows which RDS databases you’d like Opal to automatically import:

​
AWS Console

opal

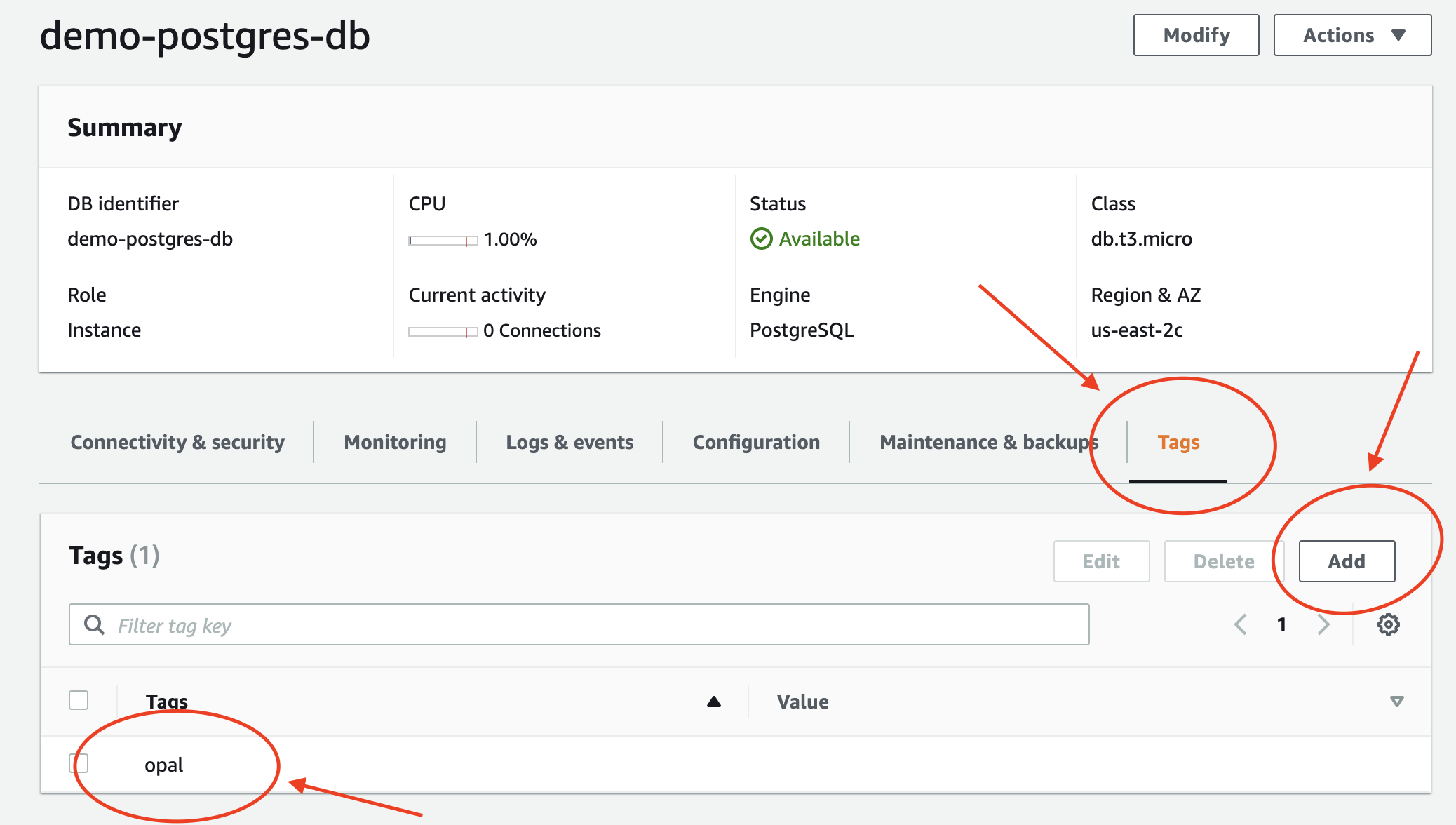

Tagging an RDS database with in the AWS Console.

​
AWS CLI

aws rds add-tags-to-resource \
  --resource-name arn:aws:rds:<REGION>:<AWS_ACCOUNT_ID>:db:<DB_INSTANCE_NAME> \
  --tags "Key=opal,Value="

​
Terraform

Add the following tags argument to your AWS RDS instance:
tags = {
  opal = ""
  opal:database-name="my_db" // This is optional. By default, Opal will pull the database name from RDS's configuration
}

​
Access an RDS database in Opal

Once you’ve successfully tagged an RDS database, it will appear on the Resources page in the Catalog. If you followed the steps above, you’ll be able to Connect with read-only and full access to your database. Access to RDS databases in Opal is session-based, meaning your developers won’t have access unless they initiate a session.

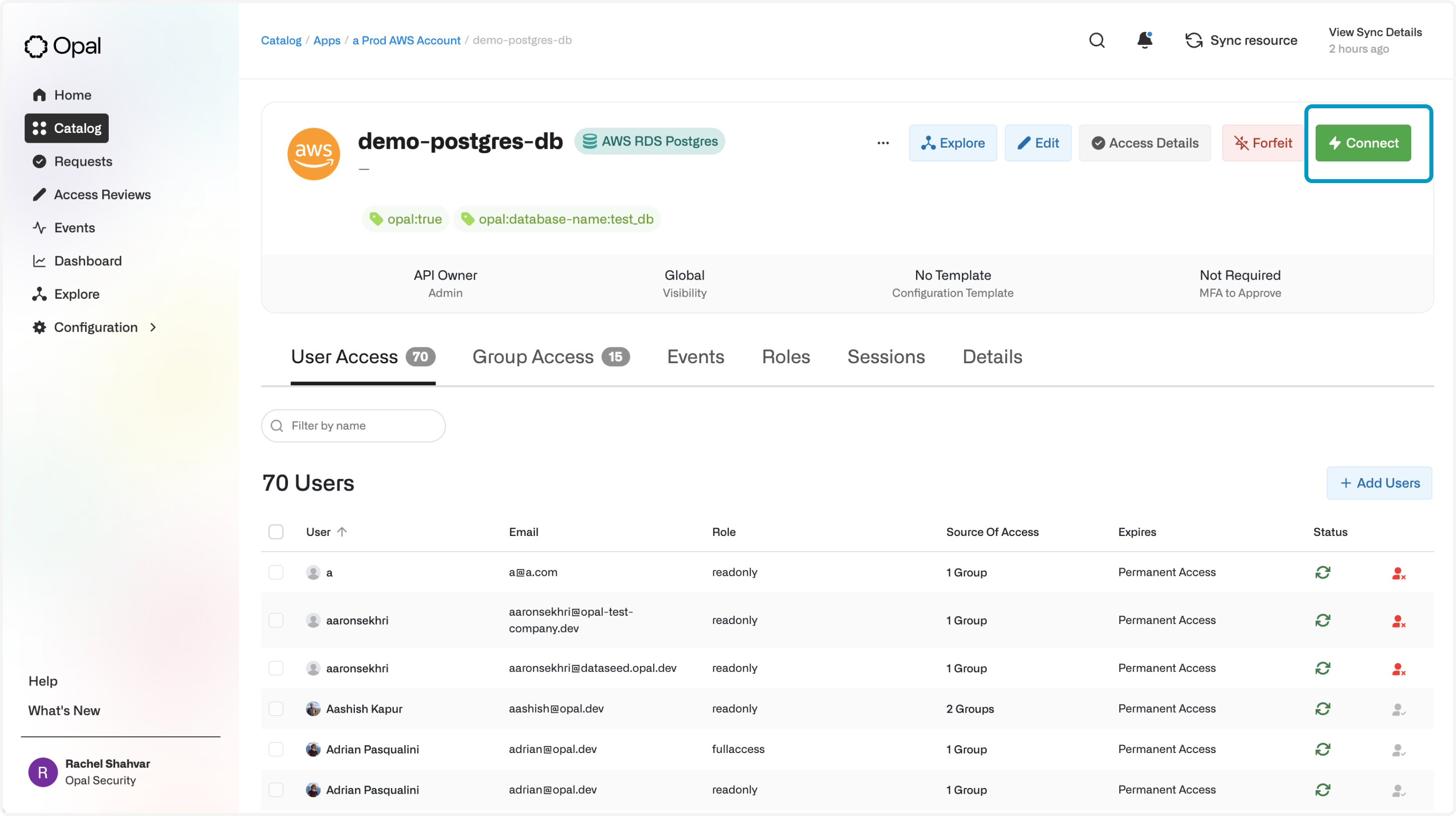

Start a session to an RDS database.

You can instantly open a connection to the database using your favorite viewer, like Postico or TablePlus, or connect manually. Your credentials can only initiate connections for 15 minutes.

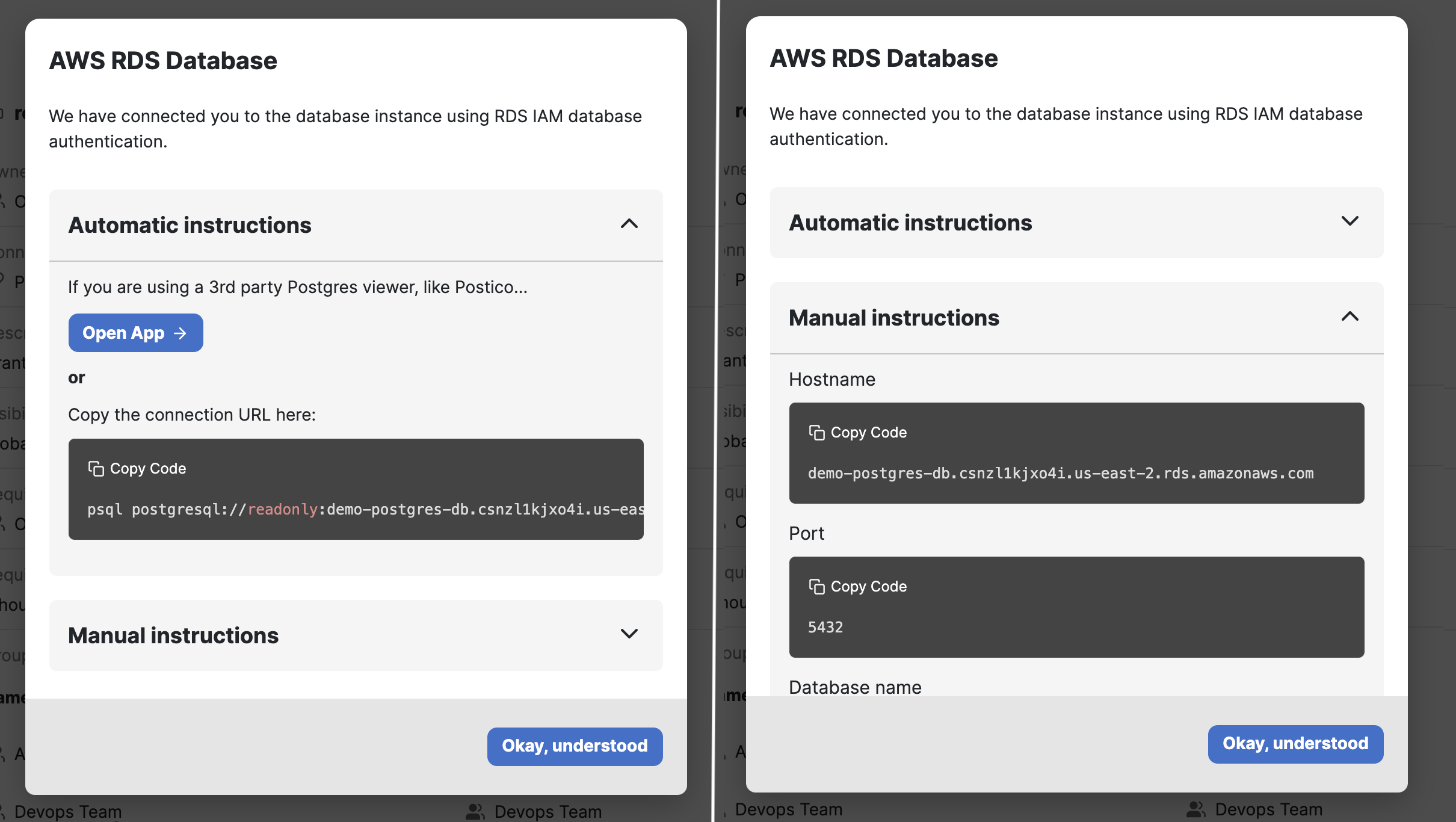

Automatically connect to your database or use manual configuration.
