GitLab

Opal supports GitLab for all tiers (free, premium, and ultimate) for GitLab Self-Managed and GitLab.com (formerly GitLab SaaS). If you use GitLab Self-Managed, admins can import both group and personal repositories. If you use GitLab.com, admins can only import group repositories.

​

Supported resources

​

1. Create a GitLab service account for Opal

​

GitLab.com

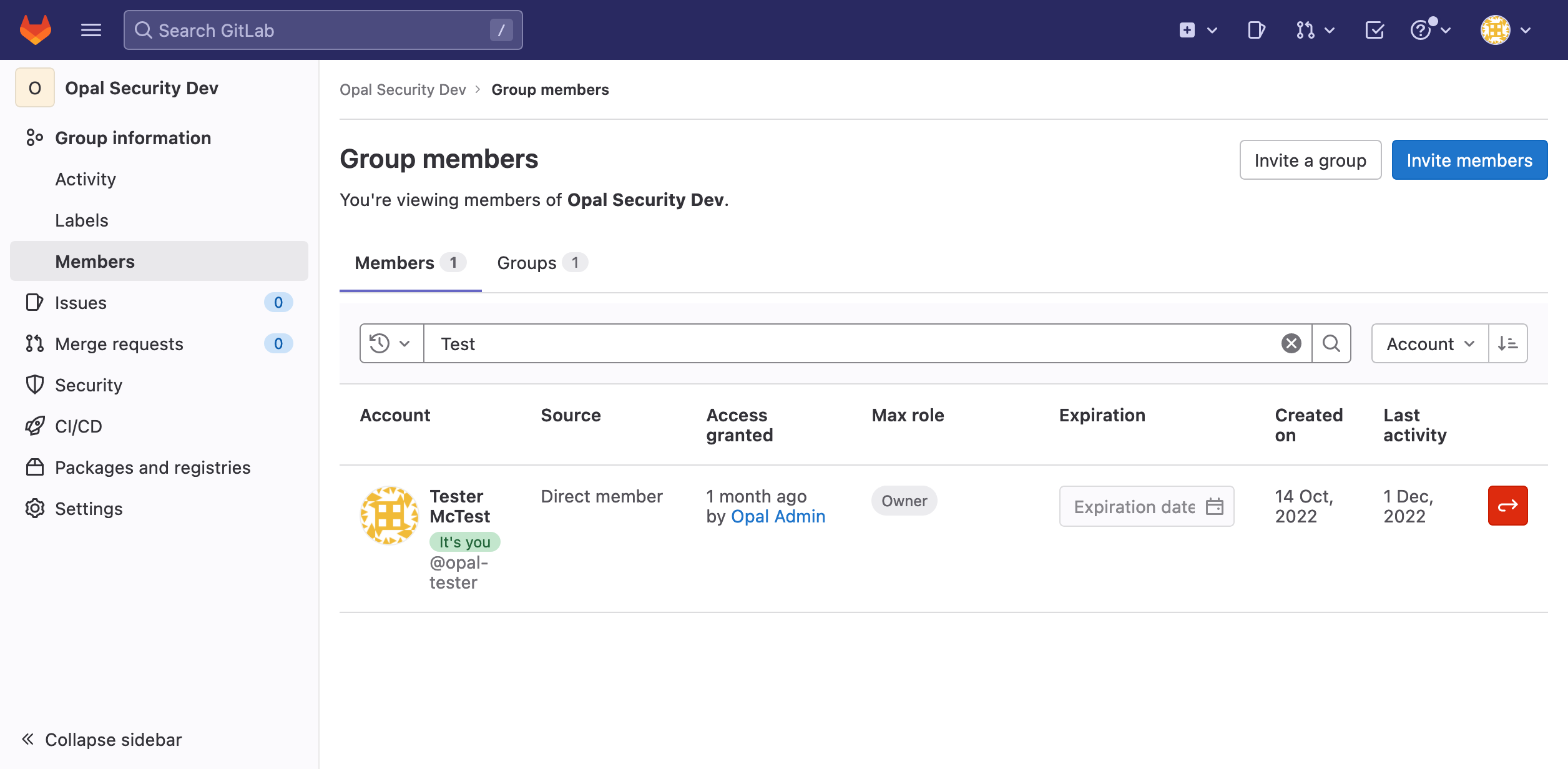

Under your top-level group that represents your organization on GitLab.com, create a new user with an Owner role. Refer to GitLab instructions for this step. A new account is preferred because we will be using the personal OAuth access token corresponding to this account.

​

GitLab Self-Managed

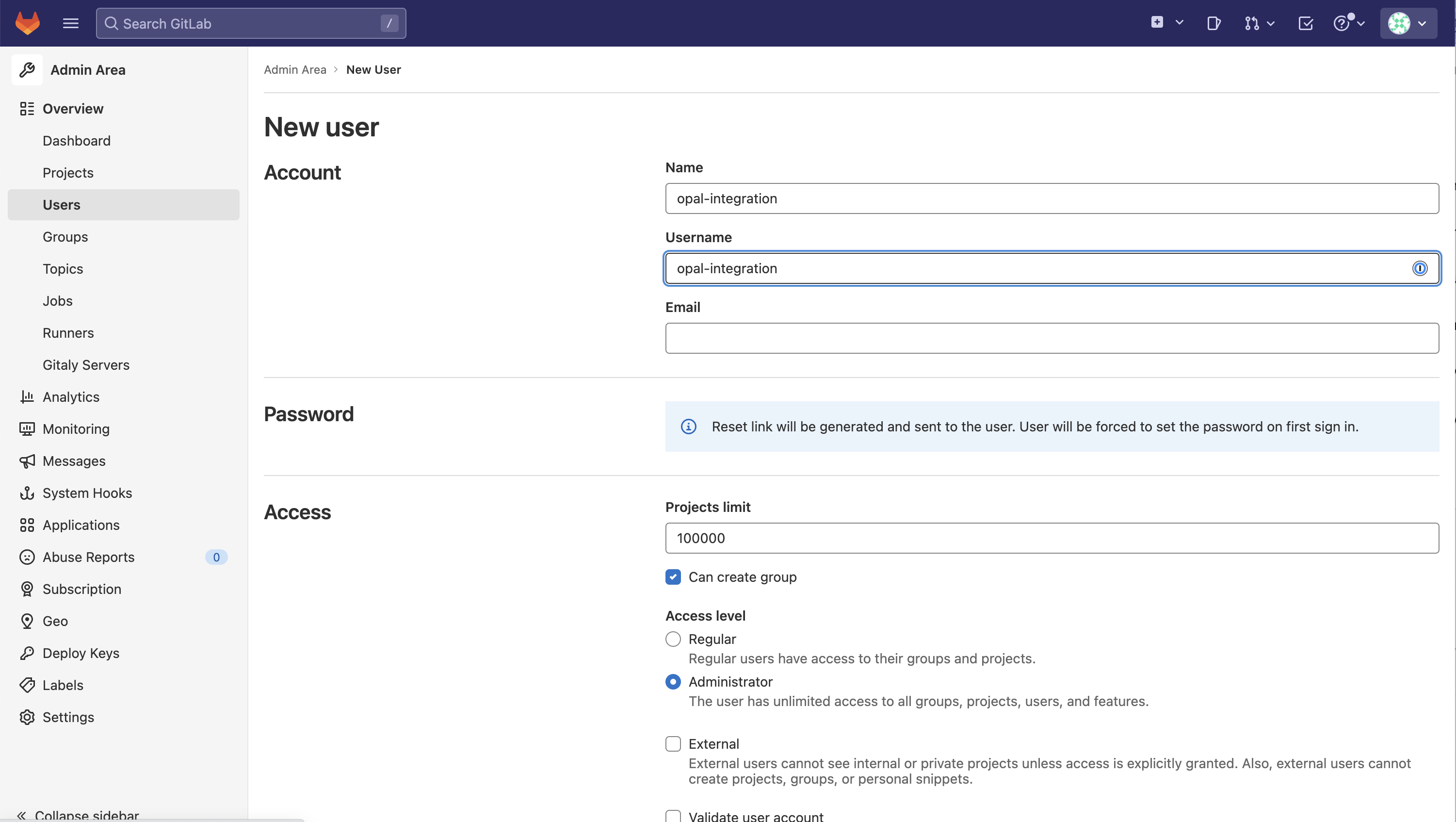

Log into your self-managed GitLab instance as an admin, and go to the Admin Area section by from the Main menu > Admin Area > Users. Create a new user and appoint the new user with the access level Administrator.

​

2. Create a GitLab OAuth app

Opal requires an Application to be set up on GitLab to handle projects and groups synchronization, as well as user pairing.

​

GitLab.com

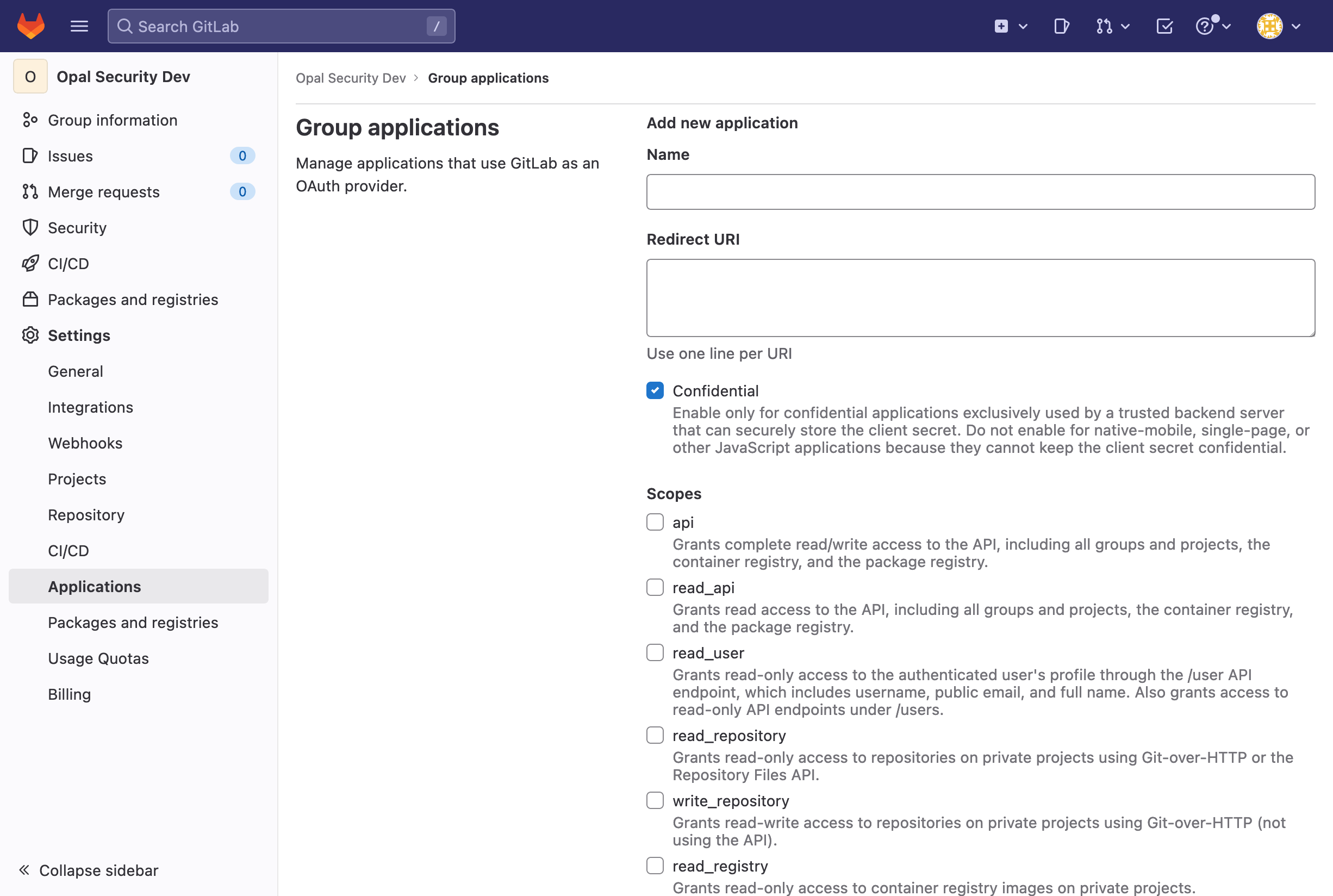

Follow the instructions in GitLab to create a new OAuth App in your top-level GitLab group. During the OAuth app creation process, for Name, you can enter Opal or any name you prefer. For Redirect URL, enter your domain name, followed by/callback/gitlab/ e.g., https://app.opal.dev/callback/gitlab/. On a new line, enter your domain name, followed by /callback/gitlab-connection/, e.g., https://app.opal.dev/callback/gitlab-connection/. Set the app as Trusted and Confidential. Under Scopes, select api, profile, and email. After creating your app, record the Application ID and copy the secret. These are used in the Application ID and Application Secret fields in Step 3.

​

GitLab Self-Managed

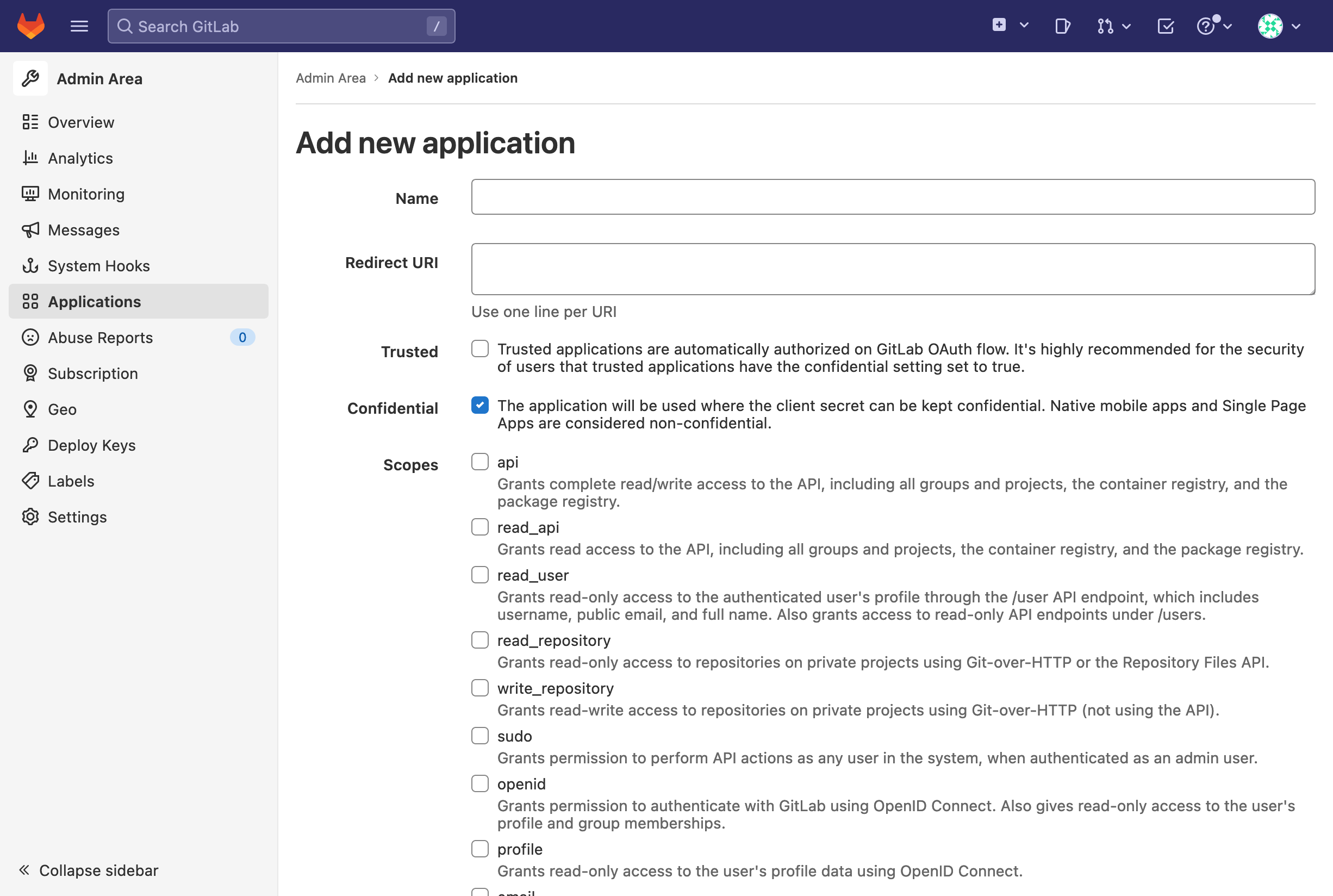

Follow the instructions in GitLab to create a new OAuth App in your GitLab Self-Managed instance. For Redirect URL, enter your domain name, followed by/callback/gitlab/ e.g., https://app.opal.dev/callback/gitlab/. On a new line, enter your domain name, followed by /callback/gitlab-connection/, e.g., https://app.opal.dev/callback/gitlab-connection/. Set the app as Trusted and Confidential. Under Scopes, select api, profile, and email. After your app is created, record the Application ID and copy the secret. These are used in the Application ID and Application Secret fields in Step 3.

​

3. Create an Opal app

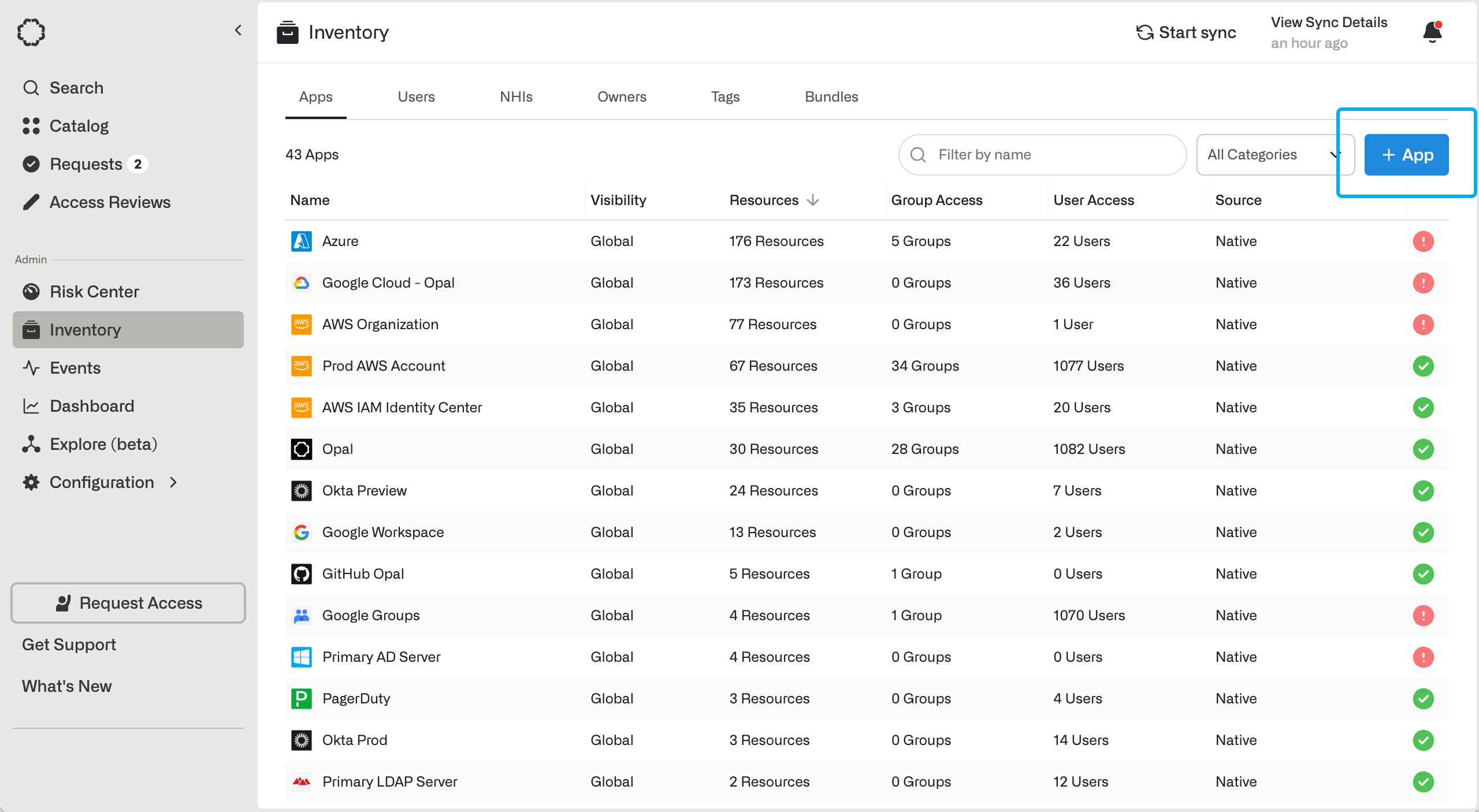

Go to the Inventory page and select + App. Then select the GitLab tile. If you use GitLab Self-Managed, click on Custom Domain and enter the domain of your instance. For App ID and App Secret, use the generated credentials from Step 2. If this step is successful, you then need to create a sync token. Click on the Setup tab in the App overview page, and click on Connect OAuth Admin Token. This will redirect you to your Gitlab instance and you should use the GitLab account created in Step 1 to complete the OAuth flow. For GitLab Self-Managed, sync should start working automatically. For GitLab.com, every Opal user in your organization must complete the following step to permit access management to your repositories in Opal.

​

4. Link GitLab identities to Opal accounts (GitLab.com only)

To enable Opal to manage access to GitLab.com, each user must link their GitLab account to their Opal account. Opal requires this step because GitLab only makes the email address of a GitLab account available via its API if a user has elected to publicly display their email address. Thus, Opal needs another way to match GitLab identities with Opal accounts. For security reasons, users must log in to both Opal and GitLab to link their accounts.

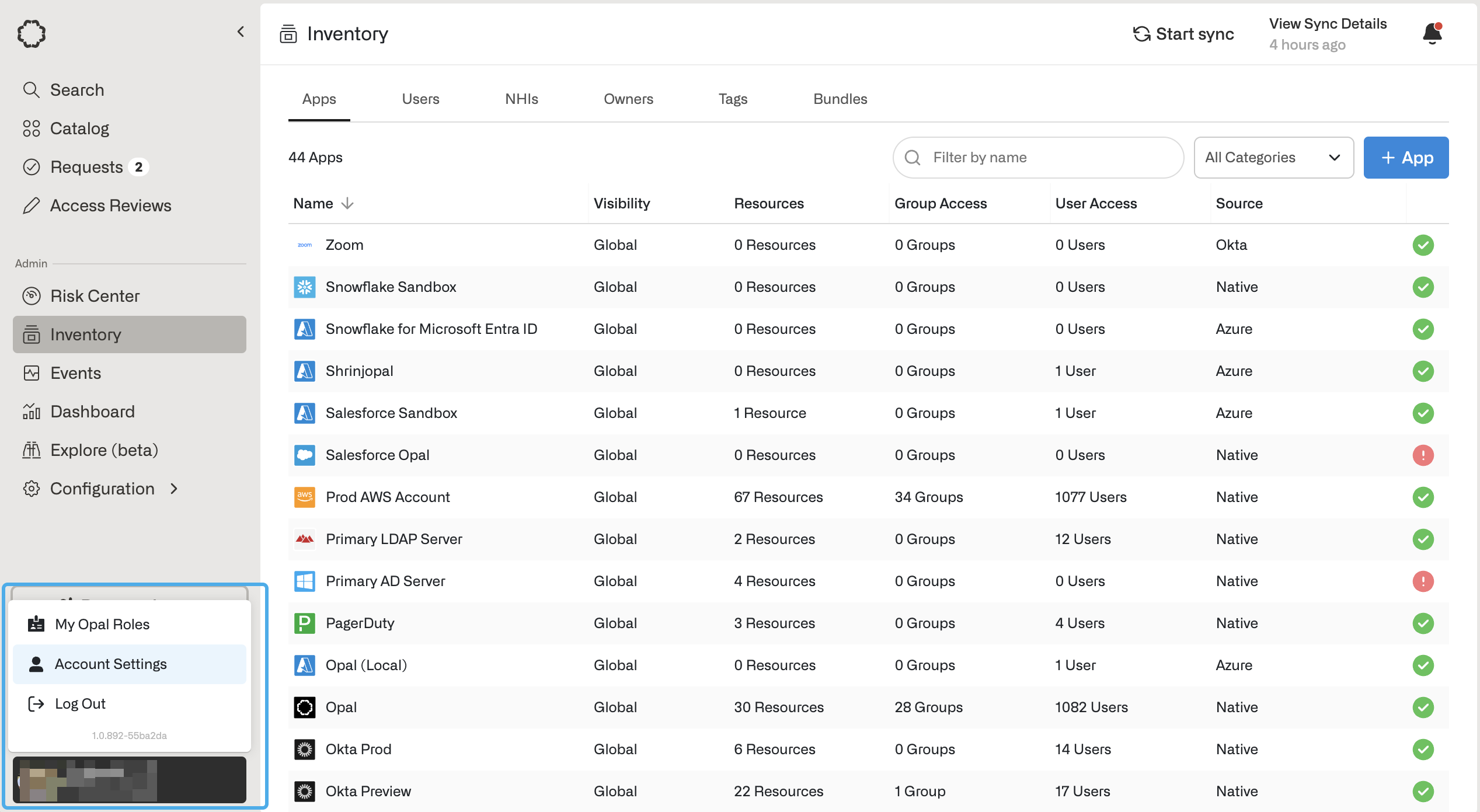

1. In the bottom left, click your User > Account Settings.

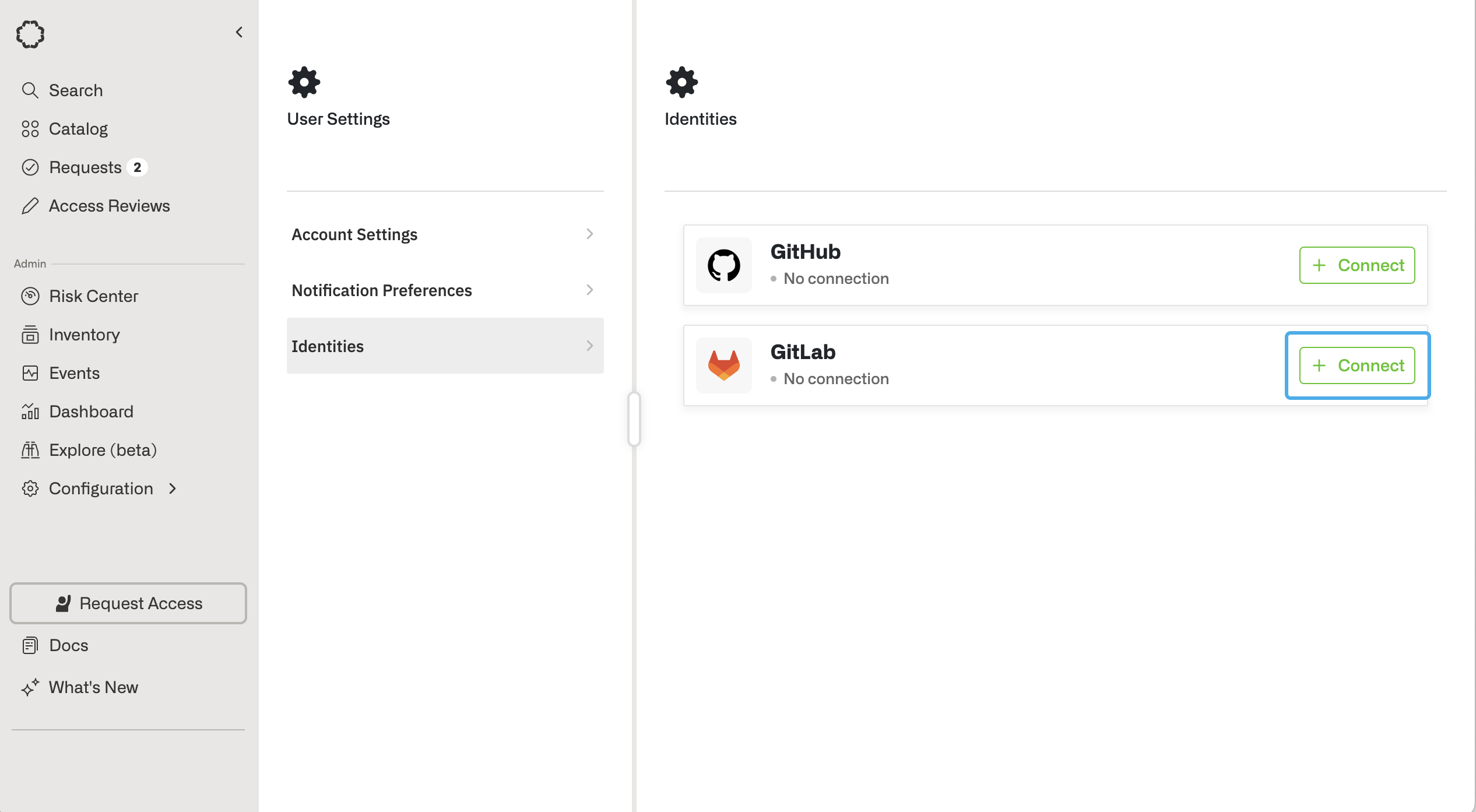

2. Click Connect next to the GitLab integration.

3. You will be redirected to a GitLab.com page, which will ask you to log into your GitLab account.
